[전자정부프레임워크] 샘플 프로젝트 생성 dev4.1 본문

Spring Framework

[전자정부프레임워크] 샘플 프로젝트 생성 dev4.1

헤르메스의날개 2023. 6. 27. 23:31
728x90

출처 : https://www.egovframe.go.kr/wiki/doku.php?id=egovframework:dev4.1:clntinstall



egovframework:dev4.1:clntinstall [eGovFrame]

본 가이드는 전자정부 표준프레임워크에서 제공하는 개발자 개발환경의 사용 방법을 제공한다. - 인터넷 웹브라우저를 통해 eGovFrame 홈페이지(https://www.egovframe.go.kr/)에 접속하여 사이트 상위메

www.egovframe.go.kr

전자정부 프레임워크 4.1.0

Spring Framework 5.3.20

Servlet 3.1

JSTL 1.2

hsqldb 2.5.2

log4j2 2.17.2

mybatis 3.5.10

1. 프로젝트 생성

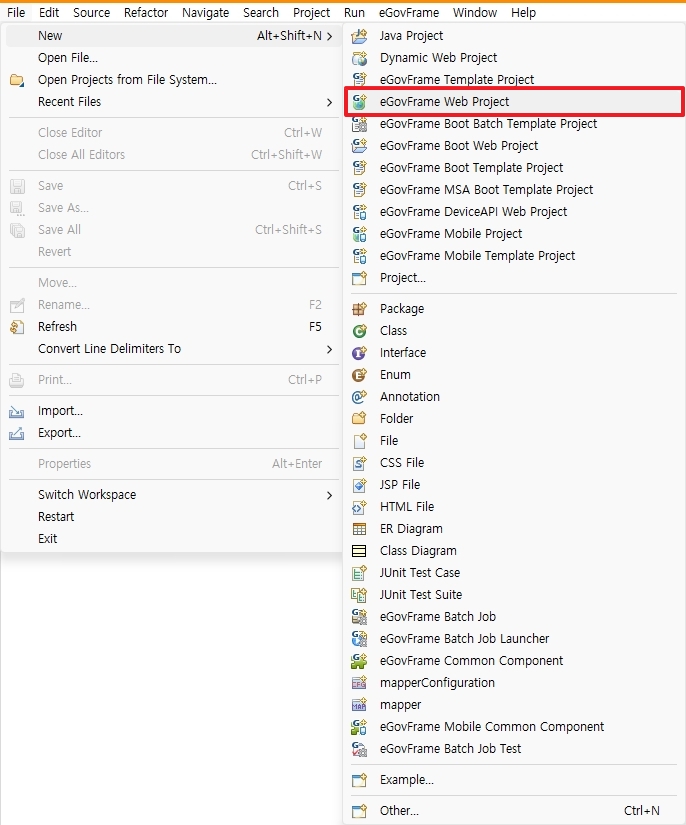

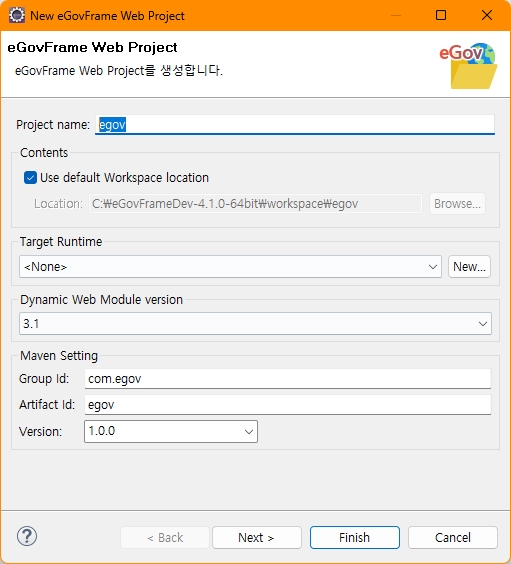

File > New > eGovFrame Web Project

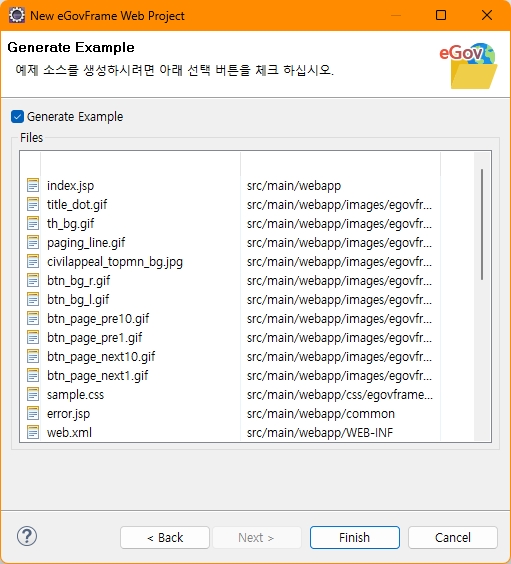

Prject name 과 Group Id 를 등록합니다.

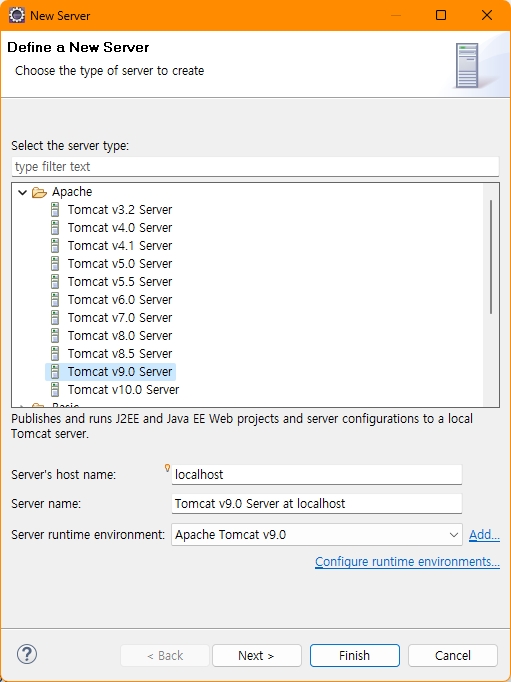

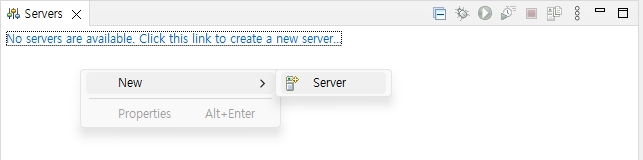

2. Server 설정

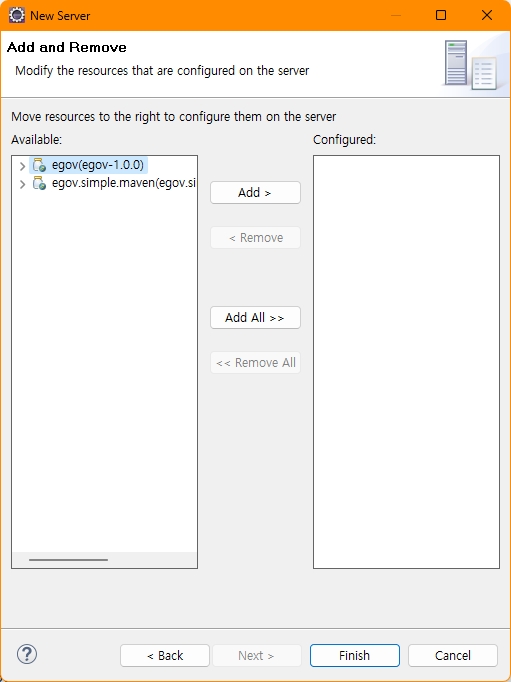

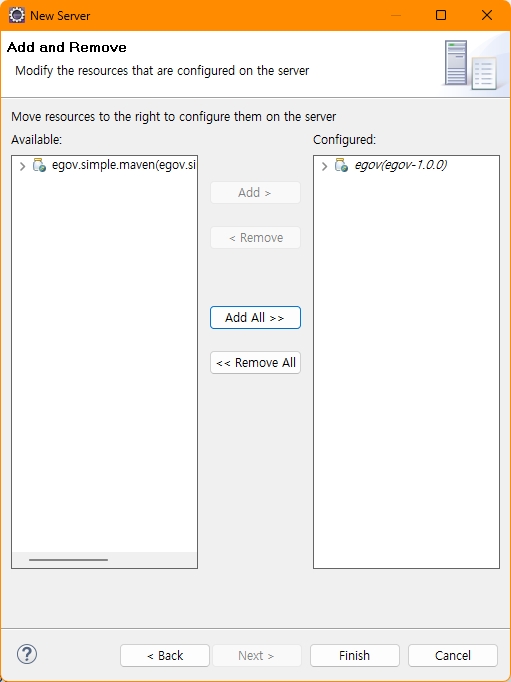

egov 를 선택합니다.

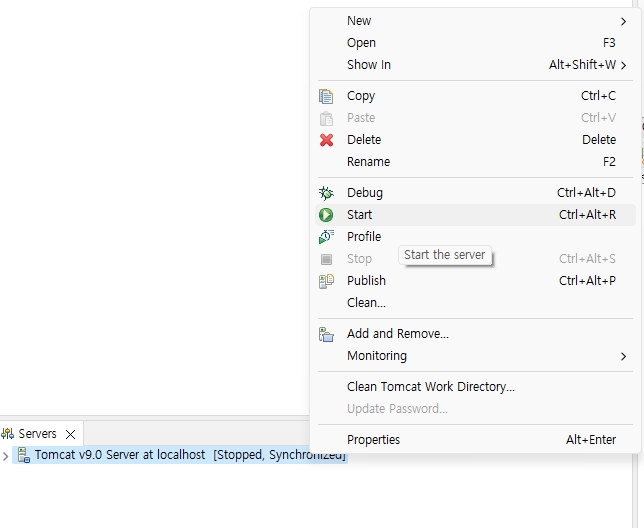

Run Server

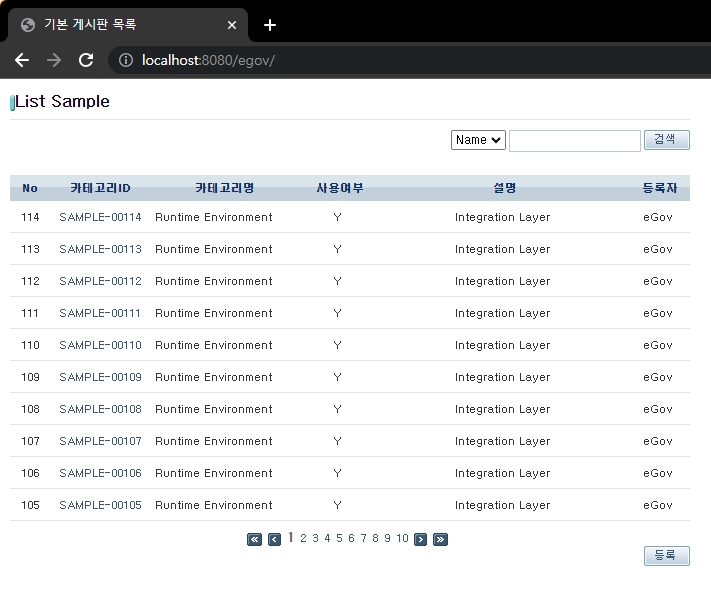

3. 실행

http://localhost:8080/egov

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
    <modelVersion>4.0.0</modelVersion>
	<groupId>com.egov</groupId>
	<artifactId>egov</artifactId>
	<packaging>war</packaging>
	<version>1.0.0</version>
	<name>egov</name>
	<url>http://www.egovframe.go.kr</url>

	<licenses>
        <license>
            <name>The Apache Software License, Version 2.0</name>
            <url>http://www.apache.org/licenses/LICENSE-2.0.txt</url>
        </license>
    </licenses>

	<properties>
	    <spring.maven.artifact.version>5.3.20</spring.maven.artifact.version>
		<org.egovframe.rte.version>4.1.0</org.egovframe.rte.version>
	</properties>

	<repositories>
        <repository>
            <id>mvn2s</id>
            <url>https://repo1.maven.org/maven2/</url>
            <releases>
                <enabled>true</enabled>
            </releases>
            <snapshots>
                <enabled>true</enabled>
            </snapshots>
        </repository>
        <repository>
			<id>egovframe</id>
			<url>https://maven.egovframe.go.kr/maven/</url>
			<releases>
				<enabled>true</enabled>
			</releases>
			<snapshots>
				<enabled>false</enabled>
			</snapshots>
		</repository>
    </repositories>

	<dependencies>
		<!-- 표준프레임워크 실행환경 -->
        <dependency>
		    <groupId>org.egovframe.rte</groupId>
		    <artifactId>org.egovframe.rte.ptl.mvc</artifactId>
		    <version>${org.egovframe.rte.version}</version>
		    <exclusions>
		    	<exclusion>
		    		<artifactId>commons-logging</artifactId>
		    		<groupId>commons-logging</groupId>
		    	</exclusion>
		    </exclusions>
        </dependency>
        <dependency>
		    <groupId>org.egovframe.rte</groupId>
		    <artifactId>org.egovframe.rte.psl.dataaccess</artifactId>
		    <version>${org.egovframe.rte.version}</version>
        </dependency>
        <dependency>
			<groupId>org.egovframe.rte</groupId>
			<artifactId>org.egovframe.rte.fdl.idgnr</artifactId>
			<version>${org.egovframe.rte.version}</version>
		</dependency>
       	<dependency>
			<groupId>org.egovframe.rte</groupId>
			<artifactId>org.egovframe.rte.fdl.property</artifactId>
			<version>${org.egovframe.rte.version}</version>
		</dependency>

        <dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>javax.servlet-api</artifactId>
			<scope>provided</scope>
			<version>3.1.0</version>
		</dependency>
		<dependency>
            <groupId>javax.servlet.jsp.jstl</groupId>
            <artifactId>jstl-api</artifactId>
            <version>1.2</version>
        </dependency>
        <dependency>
		    <groupId>taglibs</groupId>
		    <artifactId>standard</artifactId>
		    <version>1.1.2</version>
        </dependency>
		<dependency>
	        <groupId>org.antlr</groupId>
	        <artifactId>antlr</artifactId>
	        <version>3.5</version>
   		</dependency>
		<dependency>
			<groupId>org.hsqldb</groupId>
			<artifactId>hsqldb</artifactId>
			<version>2.5.2</version>
		</dependency>

        <!-- mysql이나 oracle DB 사용시 아래 설정 추가
        <dependency>
            <groupId>com.googlecode.log4jdbc</groupId>
            <artifactId>log4jdbc</artifactId>
            <version>1.2</version>
            <exclusions>
                <exclusion>
                    <artifactId>slf4j-api</artifactId>
                    <groupId>org.slf4j</groupId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
		    <groupId>org.apache.commons</groupId>
		    <artifactId>commons-dbcp2</artifactId>
		    <version>2.9.0</version>
		</dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.29</version>
        </dependency>

        <dependency>
            <groupId>ojdbc</groupId>
            <artifactId>ojdbc</artifactId>
            <version>14</version>
            <scope>system</scope>
            <systemPath>${basedir}/src/main/webapp/WEB-INF/lib/ojdbc-14.jar</systemPath>
        </dependency>
        -->
	</dependencies>

	<build>
        <defaultGoal>install</defaultGoal>
        <directory>${basedir}/target</directory>
        <finalName>${artifactId}-${version}</finalName>
        <pluginManagement>
            <plugins>
				<plugin>
					<groupId>org.codehaus.cargo</groupId>
					<artifactId>cargo-maven3-plugin</artifactId>
					<version>1.9.13</version>
					<configuration>
						<container>
							<containerId>tomcat8x</containerId>
							<type>embedded</type>
						</container>
						<configuration>
							<properties>
								<cargo.servlet.port>8080</cargo.servlet.port>
							</properties>
						</configuration>
					</configuration>
				</plugin>
                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <version>3.10.1</version>
                    <configuration>
                        <source>1.8</source>
                        <target>1.8</target>
                        <encoding>UTF-8</encoding>
                    </configuration>
                </plugin>
                <plugin>
                	<groupId>org.apache.maven.plugins</groupId>
                	<artifactId>maven-war-plugin</artifactId>
                	<version>3.3.2</version>
                	<configuration>
                		<failOnMissingWebXml>false</failOnMissingWebXml>
                	</configuration>
                </plugin>
                <plugin>
                    <groupId>org.codehaus.mojo</groupId>
                    <artifactId>hibernate3-maven-plugin</artifactId>
                    <version>3.0</version>
                    <configuration>
                        <components>
                            <component>
                                <name>hbm2ddl</name>
                                <implementation>annotationconfiguration</implementation>
                            </component>
                        </components>
                    </configuration>
                    <dependencies>
                        <dependency>
                            <groupId>org.hsqldb</groupId>
                            <artifactId>hsqldb</artifactId>
                            <version>2.5.2</version>
                        </dependency>
                    </dependencies>
                </plugin>
                <!-- EMMA -->
                <plugin>
                    <groupId>org.codehaus.mojo</groupId>
                    <artifactId>emma-maven-plugin</artifactId>
                    <version>1.0-alpha-3</version>
                </plugin>
                <!-- PMD manven plugin -->
                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-pmd-plugin</artifactId>
                    <version>3.17.0</version>
                </plugin>
            </plugins>
        </pluginManagement>
        <plugins>
            <!-- EMMA -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>2.22.2</version>
                <configuration>
                    <skipTests>true</skipTests>
                    <forkMode>once</forkMode>
                    <reportFormat>xml</reportFormat>
                    <excludes>
                        <exclude>**/Abstract*.java</exclude>
                        <exclude>**/*Suite.java</exclude>
                    </excludes>
                    <includes>
                        <include>**/*Test.java</include>
                    </includes>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.codehaus.mojo</groupId>
                <artifactId>emma-maven-plugin</artifactId>
                <inherited>true</inherited>
            </plugin>
            <!-- JavaDoc -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-javadoc-plugin</artifactId>
                <version>3.4.0</version>
            </plugin>
        </plugins>
    </build>
    <reporting>
        <outputDirectory>${basedir}/target/site</outputDirectory>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-project-info-reports-plugin</artifactId>
                <version>3.3.0</version>
                <reportSets>
                    <reportSet>
                        <id>sunlink</id>
                        <reports>
                            <report>javadoc</report>
                        </reports>
                        <inherited>true</inherited>
                        <configuration>
                            <links>
                                <link>https://docs.oracle.com/javase/8/docs/api/</link>
                            </links>
                        </configuration>
                    </reportSet>
                </reportSets>
            </plugin>
            <!-- JUnit Test Results & EMMA Coverage Reporting -->
            <plugin>
                <groupId>org.codehaus.mojo</groupId>
                <artifactId>emma-maven-plugin</artifactId>
                <inherited>true</inherited>
            </plugin>
            <plugin>
                <groupId>org.codehaus.mojo</groupId>
                <artifactId>surefire-report-maven-plugin</artifactId>
                <inherited>true</inherited>
                <reportSets>
                    <reportSet>
                        <reports>
                            <report>report-only</report>
                        </reports>
                    </reportSet>
                </reportSets>
            </plugin>
            <!-- Generating JavaDoc Report -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-javadoc-plugin</artifactId>
                <configuration>
                    <minmemory>128m</minmemory>
                    <maxmemory>512m</maxmemory>
                    <encoding>${encoding}</encoding>
                    <docencoding>${encoding}</docencoding>
                    <charset>${encoding}</charset>
                </configuration>
            </plugin>
            <!-- Generating Java Source in HTML -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-jxr-plugin</artifactId>
                <configuration>
                    <inputEncoding>${encoding}</inputEncoding>
                    <outputEncoding>${encoding}</outputEncoding>
                    <linkJavadoc>true</linkJavadoc>
                    <javadocDir>apidocs</javadocDir>
                </configuration>
            </plugin>
        </plugins>
    </reporting>
</project>



https://www.egovframe.go.kr/wiki/doku.php?id=egovframework:dev:gettingstarted



egovframework:dev:gettingstarted [eGovFrame]



www.egovframe.go.kr

https://hermeslog.tistory.com/727



[전자정부프레임워크] 전자정부프레임워크 설치

전자정부프레임워크를 테스트 해보고자 개발환경 세팅을 해보려고 합니다. https://www.egovframe.go.kr/wiki/doku.php?id=egovframework:dev4.1:gettingstarted egovframework:dev4.1:gettingstarted [eGovFrame] 본 가이드는 전자정

hermeslog.tistory.com
