[개발환경] Spring + Maven + MyBatis + HSQL Simple Web Sample

sample-spring-webapp.rar

0.03MB

갑자기 Spring 3.x 환경으로 개발환경을 구축하려니, 고생스럽네요.

덕분에 이것 저것 급조해서 간단하게 만들어봤습니다.

현재는 Eclipse plugin의 지원이 원할치 않습니다.

neon3 버전 이전버전은 Marketplace 가 연결되지 않더군요.

그렇기 때문에, 이러한 환경을 만드는 것 조차 힘들었습니다.

---

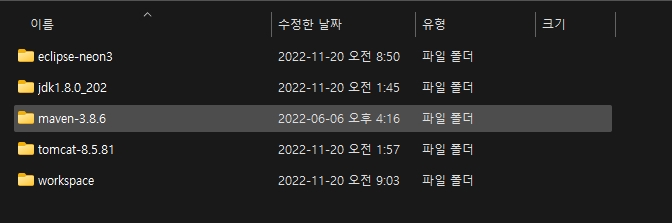

개발환경

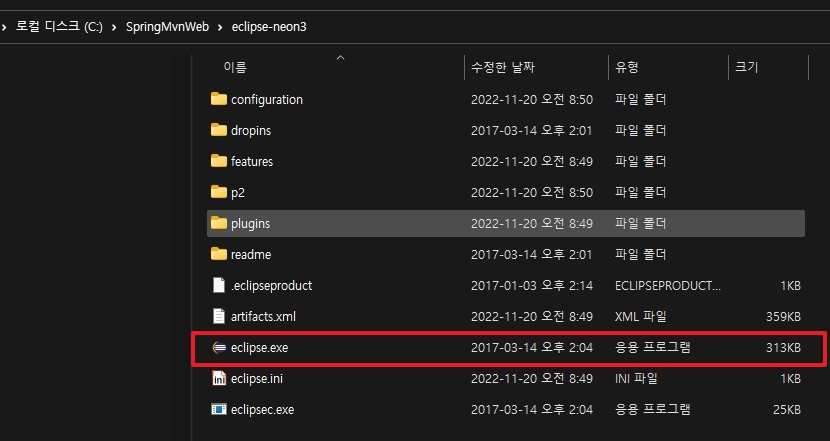

Eclipse Java EE IDE for Web Developers ( Eclipse IDE Neon 3 Packages x64 )



Spring 3.2.14

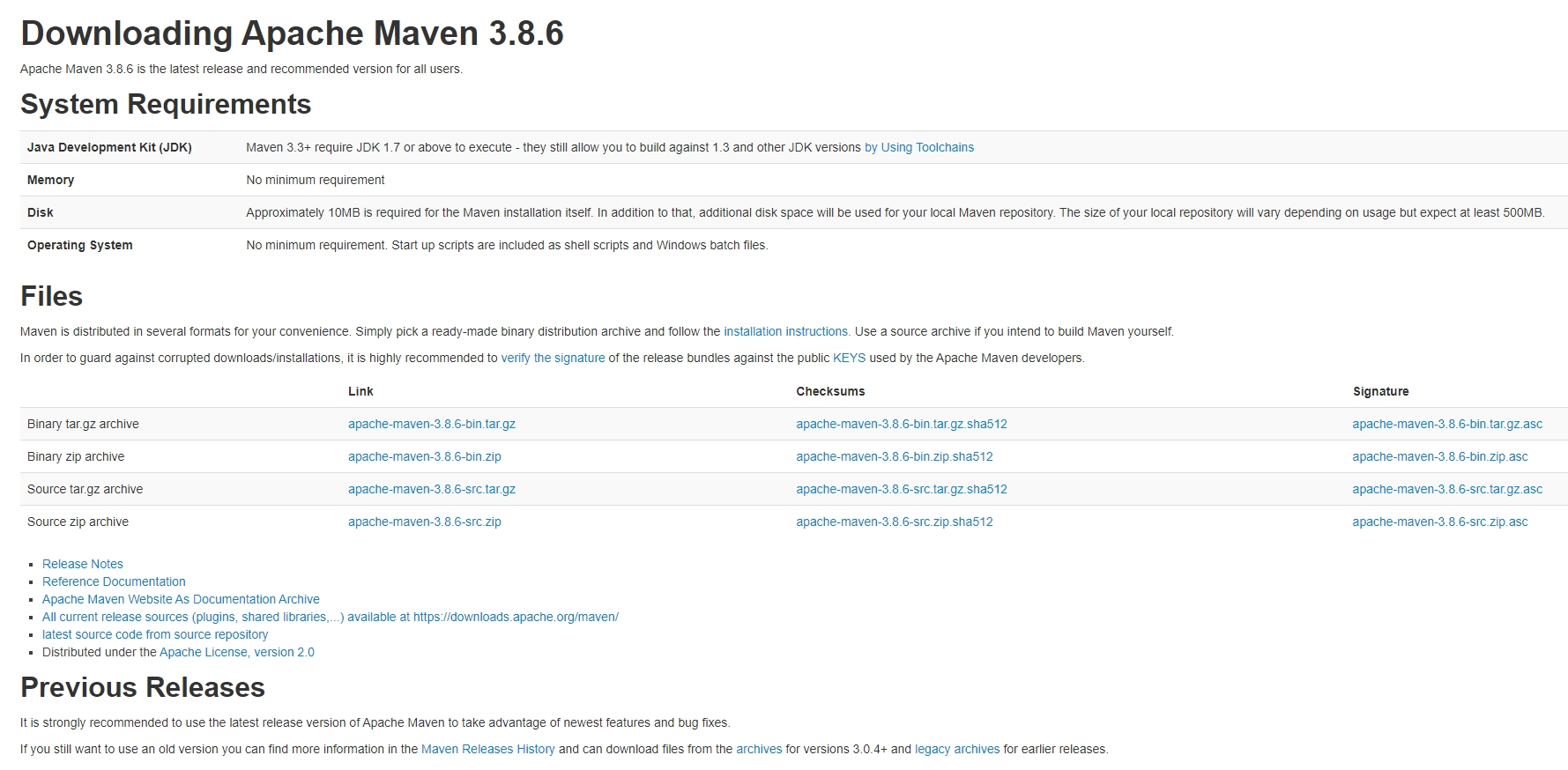

Maven 3.8.6

MyBastis 3.1.1

HSQL 2.2.7

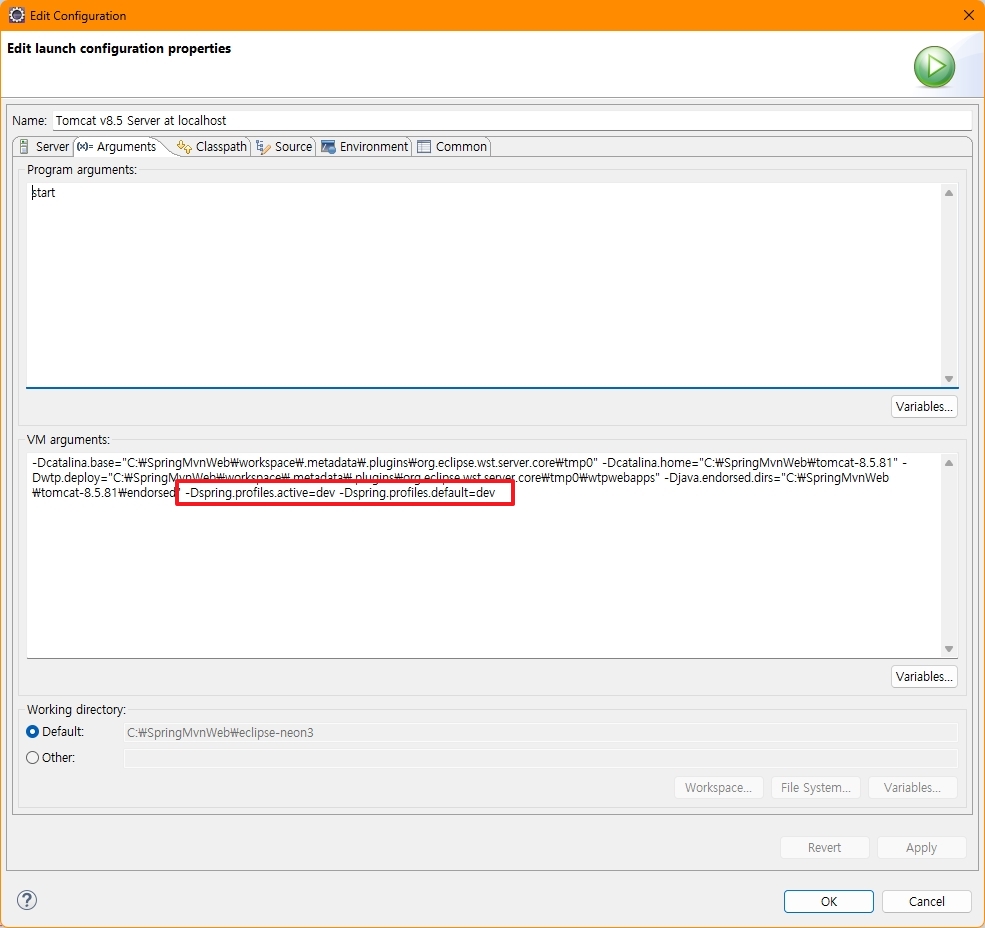

Tomcat 8.5.81

JDK 1.8.0_202

---

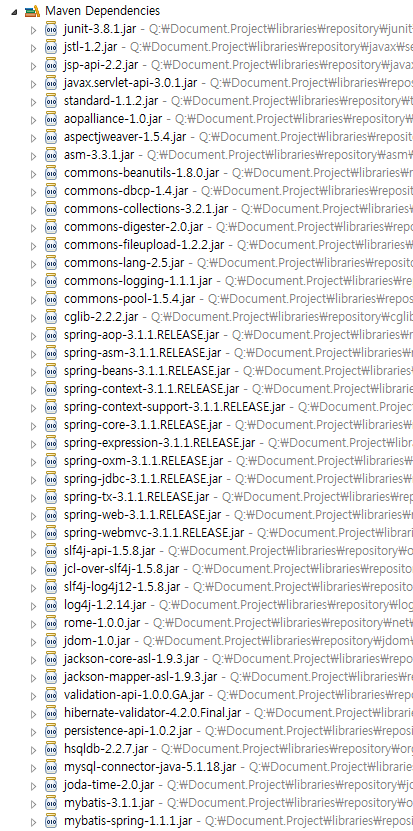

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>test.study.spring</groupId>
    <artifactId>sample-spring-webapp</artifactId>
    <packaging>war</packaging>
    <version>0.0.1-SNAPSHOT</version>
    <name>sample-spring-webapp Maven Webapp</name>
    <url>http://maven.apache.org</url>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>

        <org.springframework.version>3.2.14.RELEASE</org.springframework.version>
        <org.slf4j.version>1.5.8</org.slf4j.version>
        <log4jdbc-version>0.2.7</log4jdbc-version>
        <org.codehaus.jackson.version>1.9.3</org.codehaus.jackson.version>

        <org.mybatis.version>3.1.1</org.mybatis.version>
        <org.mybatis.spring.version>1.1.1</org.mybatis.spring.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>3.8.1</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>jsp-api</artifactId>
            <version>2.2</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.0.1</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>taglibs</groupId>
            <artifactId>standard</artifactId>
            <version>1.1.2</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>aopalliance</groupId>
            <artifactId>aopalliance</artifactId>
            <version>1.0</version>
        </dependency>
        <dependency>
            <groupId>aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>1.5.4</version>
        </dependency>
        <dependency>
            <groupId>asm</groupId>
            <artifactId>asm</artifactId>
            <version>3.3.1</version>
        </dependency>

        <dependency>
            <groupId>commons-beanutils</groupId>
            <artifactId>commons-beanutils</artifactId>
            <version>1.8.0</version>
        </dependency>
        <dependency>
            <groupId>commons-dbcp</groupId>
            <artifactId>commons-dbcp</artifactId>
            <version>1.4</version>
        </dependency>
        <dependency>
            <groupId>commons-collections</groupId>
            <artifactId>commons-collections</artifactId>
            <version>3.2.1</version>
        </dependency>
        <dependency>
            <groupId>commons-digester</groupId>
            <artifactId>commons-digester</artifactId>
            <version>2.0</version>
        </dependency>
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.2.2</version>
        </dependency>
        <dependency>
            <groupId>commons-lang</groupId>
            <artifactId>commons-lang</artifactId>
            <version>2.5</version>
        </dependency>
        <dependency>
            <groupId>commons-logging</groupId>
            <artifactId>commons-logging</artifactId>
            <version>1.1.1</version>
        </dependency>
        <dependency>
            <groupId>commons-pool</groupId>
            <artifactId>commons-pool</artifactId>
            <version>1.5.4</version>
        </dependency>

        <dependency>
            <groupId>cglib</groupId>
            <artifactId>cglib</artifactId>
            <version>2.2.2</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aop</artifactId>
            <version>${org.springframework.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
            <version>${org.springframework.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${org.springframework.version}</version>
            <exclusions>
                <!-- Exclude Commons Logging in favor of SLF4j -->
                <exclusion>
                    <groupId>commons-logging</groupId>
                    <artifactId>commons-logging</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
            <version>${org.springframework.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>${org.springframework.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-expression</artifactId>
            <version>${org.springframework.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-oxm</artifactId>
            <version>${org.springframework.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${org.springframework.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>${org.springframework.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>${org.springframework.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${org.springframework.version}</version>
        </dependency>


        <!-- Log Dependencies-->
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>1.5.8</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>jcl-over-slf4j</artifactId>
            <version>${org.slf4j.version}</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>${org.slf4j.version}</version>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.14</version>
            <exclusions>
                <exclusion>
                    <groupId>javax.mail</groupId>
                    <artifactId>mail</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>javax.jms</groupId>
                    <artifactId>jms</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>com.sun.jdmk</groupId>
                    <artifactId>jmxtools</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>com.sun.jmx</groupId>
                    <artifactId>jmxri</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.lazyluke</groupId>
            <artifactId>log4jdbc-remix</artifactId>
            <version>${log4jdbc-version}</version>
        </dependency>

        <dependency>
            <groupId>net.java.dev.rome</groupId>
            <artifactId>rome</artifactId>
            <version>1.0.0</version>
        </dependency>
        <dependency>
            <groupId>jdom</groupId>
            <artifactId>jdom</artifactId>
            <version>1.0</version>
        </dependency>

        <dependency>
            <groupId>org.codehaus.jackson</groupId>
            <artifactId>jackson-core-asl</artifactId>
            <version>${org.codehaus.jackson.version}</version>
        </dependency>
        <dependency>
            <groupId>org.codehaus.jackson</groupId>
            <artifactId>jackson-mapper-asl</artifactId>
            <version>${org.codehaus.jackson.version}</version>
        </dependency>

        <dependency>
            <groupId>javax.validation</groupId>
            <artifactId>validation-api</artifactId>
            <version>1.0.0.GA</version>
        </dependency>
        <dependency>
            <groupId>org.hibernate</groupId>
            <artifactId>hibernate-validator</artifactId>
            <version>4.2.0.Final</version>
        </dependency>
        <dependency>
            <groupId>javax.persistence</groupId>
            <artifactId>persistence-api</artifactId>
            <version>1.0.2</version>
        </dependency>

        <dependency>
            <groupId>org.hsqldb</groupId>
            <artifactId>hsqldb</artifactId>
            <version>2.2.7</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.18</version>
        </dependency>

        <dependency>
            <groupId>joda-time</groupId>
            <artifactId>joda-time</artifactId>
            <version>2.0</version>
        </dependency>

        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>${org.mybatis.version}</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>${org.mybatis.spring.version}</version>
        </dependency>

    </dependencies>

    <build>
        <finalName>sample-spring-webapp</finalName>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-war-plugin</artifactId>
                <version>2.2</version>
                <configuration>
                    <warSourceDirectory>webapp</warSourceDirectory>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>2.3.2</version>
                <configuration>
                    <source>1.7</source>
                    <target>1.7</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <artifactId>maven-eclipse-plugin</artifactId>
                <version>2.9</version>
                <configuration>
                    <downloadSources>true</downloadSources>
                    <downloadJavadocs>true</downloadJavadocs>
                    <wtpversion>2.0</wtpversion>
                </configuration>
            </plugin>

        </plugins>
    </build>
</project>

/webapp/WEB-INF/web.xml

<?xml version= "1.0" encoding ="UTF-8"?>
<web-app version= "2.4" xmlns ="http://java.sun.com/xml/ns/j2ee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd">

    <display-name>Archetype Created Web Application </display-name>

    <!-- parent spring bean xml -->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:/config/spring/context-root.xml</param-value>
    </context-param>

    <!-- application listener -->
    <listener>
        <listener-class> org.springframework.web.context.ContextLoaderListener </listener-class>
    </listener>

    <!-- utf-8 filter -->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class> org.springframework.web.filter.CharacterEncodingFilter </filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
    </filter>

    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!-- spring dispatcher -->
    <servlet>
        <servlet-name>springDispatcher</servlet-name>
        <servlet-class> org.springframework.web.servlet.DispatcherServlet </servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>
                /WEB-INF/config/springmvc/dispatcher-servlet.xml
            </param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>

    <servlet-mapping>
        <servlet-name>springDispatcher</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <session-config>
        <session-timeout>60</session-timeout>
    </session-config>

    <welcome-file-list>
        <welcome-file>index.html</welcome-file>
        <welcome-file>Index.do</welcome-file>
    </welcome-file-list>
</web-app>

dispatcher-servlet.xml

<?xml version= "1.0" encoding ="UTF-8"?>
<beans xmlns= "http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:util="http://www.springframework.org/schema/util"
    xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p" xmlns:mvc="http://www.springframework.org/schema/mvc"
    xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-3.1.xsd
        http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
        http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-3.1.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.1.xsd">

    <!-- annotation config & scan -->
    <context:annotation-config />

    <context:component-scan base-package ="spring.simple.test">
        <context:include-filter type= "annotation" expression="org.springframework.stereotype.Controller" />
        <context:exclude-filter type= "annotation" expression="org.springframework.stereotype.Service" />
        <context:exclude-filter type= "annotation" expression="org.springframework.stereotype.Repository" />
    </context:component-scan>

    <!-- JSR-303 support will be detected on classpath and enabled automatically -->
    <mvc:annotation-driven>
        <mvc:message-converters>
            <bean class="org.springframework.http.converter.FormHttpMessageConverter" >
                <property name ="charset">
                    <bean class ="java.nio.charset.Charset" factory-method ="forName">
                        <constructor-arg value ="UTF-8" />
                    </bean>
                </property>
            </bean>
            <bean class="org.springframework.http.converter.feed.AtomFeedHttpMessageConverter" >
                <property name ="supportedMediaTypes" value ="application/atom+xml" />
            </bean>
            <bean class="org.springframework.http.converter.json.MappingJacksonHttpMessageConverter" >
                <property name ="supportedMediaTypes" value ="application/json" />
            </bean>
        </mvc:message-converters>
    </mvc:annotation-driven>

    <!-- classpath 로딩시 locale parameter 가 정상적으로 동작하지 않음. <mvc:annotation-driven> 과 같은 파일내에서 사용 -->
    <mvc:interceptors>
        <bean id ="webContentInterceptor" class="org.springframework.web.servlet.mvc.WebContentInterceptor" >
            <property name ="cacheSeconds" value="0" />
            <property name ="useExpiresHeader" value ="true" />
            <property name ="useCacheControlHeader" value ="true" />
            <property name ="useCacheControlNoStore" value ="true" />
        </bean>
    </mvc:interceptors>

    <!-- view name tanslator -->
    <bean id="viewNameTranslator" class="org.springframework.web.servlet.view.DefaultRequestToViewNameTranslator" />

    <!-- view resolver -->
    <bean class="org.springframework.web.servlet.view.ContentNegotiatingViewResolver" >
        <property name ="mediaTypes">
            <map>
                <entry key ="json" value="application/json" />
                <entry key ="xml" value="application/xml" />
                <entry key ="do" value="text/html" />
            </map>
        </property>
        <property name ="viewResolvers">
            <list>
                <bean class="org.springframework.web.servlet.view.BeanNameViewResolver" />
                <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver" >
                    <property name ="prefix" value="/WEB-INF/views/jsp/" />
                    <property name ="suffix" value=".jsp" />
                    <property name ="order" value="2" />
                </bean>
            </list>
        </property>
    </bean>
</beans>

/src/main/resource/config/spring/context-root.xml

<?xml version= "1.0" encoding ="UTF-8"?>
<beans:beans xmlns= "http://www.springframework.org/schema/mvc" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:beans="http://www.springframework.org/schema/beans" xsi:schemaLocation ="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsd">

    <beans:import resource="context/context-common.xml" />
    <beans:import resource="context/context-datasource.xml" />
    <beans:import resource="context/context-mapper.xml" />
    <beans:import resource="context/context-transaction.xml" />

</beans:beans>

/src/main/resource/config/spring/context/context-common.xml

<?xml version= "1.0" encoding ="UTF-8"?>
<beans xmlns= "http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:util="http://www.springframework.org/schema/util"
    xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
    xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
        http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-3.1.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.1.xsd">

    <!-- annotation enabled -->
    <context:annotation-config />

    <context:component-scan base-package ="spring.simple.test">
        <context:exclude-filter type= "annotation" expression="org.springframework.stereotype.Controller" />
    </context:component-scan>

</beans>

/src/main/resource/config/spring/context/context-datasource.xml

<?xml version= "1.0" encoding ="UTF-8"?>
<beans xmlns= "http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:util="http://www.springframework.org/schema/util"
    xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p" xmlns:jdbc="http://www.springframework.org/schema/jdbc"
    xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
        http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-3.1.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.1.xsd
        http://www.springframework.org/schema/jdbc http://www.springframework.org/schema/jdbc/spring-jdbc-3.1.xsd">

    <jdbc:embedded-database id ="dataSource" type="HSQL" />

    <jdbc:initialize-database data-source ="dataSource" ignore-failures="DROPS" >
        <jdbc:script location ="classpath:database/hsqldb/schema.sql" />
        <jdbc:script location ="classpath:database/hsqldb/data.sql" />
    </jdbc:initialize-database>
</beans>

/src/main/resource/config/spring/context/context-mapper.xml

<?xml version= "1.0" encoding ="UTF-8"?>
<beans xmlns= "http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:util="http://www.springframework.org/schema/util"
    xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
    xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
        http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-3.1.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.1.xsd">

    <bean id="sqlSessionFactory" class= "org.mybatis.spring.SqlSessionFactoryBean" >
        <property name ="dataSource" ref="dataSource" />
        <property name ="configLocation" value="classpath:config/mapper/mybatis-config-base.xml" />

        <property name ="mapperLocations">
            <list>
                <value> classpath*:spring/simple/test/sample/**/dao/*Mapper.xml </value>
            </list>
        </property>
    </bean>

    <!-- scan for mappers and let them be autowired -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer" >
        <property name ="basePackage" value="spring.simple.test.sample" />
    </bean>
</beans>

/src/main/resource/config/spring/context/context-transaction.xml

<?xml version= "1.0" encoding ="UTF-8"?>
<beans xmlns= "http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx" xmlns:p="http://www.springframework.org/schema/p"
    xmlns:aop="http://www.springframework.org/schema/aop"
    xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
       http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.1.xsd
       http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.1.xsd
       http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.1.xsd">

    <tx:annotation-driven proxy-target-class="true" />

    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager" p:dataSource-ref ="dataSource" />
</beans>

/src/main/resource/config/mapper/mybatis-config-base.xml

<?xml version= "1.0" encoding ="UTF-8" ?>
<!DOCTYPE configuration
    PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
    "http://mybatis.org/dtd/mybatis-3-config.dtd">

<configuration>

    <settings>
        <setting name ="cacheEnabled" value="true" />
        <setting name ="lazyLoadingEnabled" value ="false" />
        <setting name ="multipleResultSetsEnabled" value ="true" />
        <setting name ="useColumnLabel" value ="true" />
        <setting name ="useGeneratedKeys" value ="false" />
        <setting name ="defaultExecutorType" value ="SIMPLE" />
        <setting name ="defaultStatementTimeout" value ="25000" />
    </settings>

    <typeHandlers>
        <!-- java.sql.Timestamp 를 java.util.Date 형으로 반환 -->
        <typeHandler javaType ="java.sql.Timestamp" handler="org.apache.ibatis.type.DateTypeHandler" />
        <typeHandler javaType ="java.sql.Time" handler="org.apache.ibatis.type.DateTypeHandler" />
        <typeHandler javaType ="java.sql.Date" handler="org.apache.ibatis.type.DateTypeHandler" />
    </typeHandlers>

</configuration>

/src/main/resource/database/hsqldb/schema.sql

create table t_sample (
    sample_no   int           not null,
    title       varchar(500)   not null,
    description varchar (1000) not null,
    primary key (sample_no)
);

/src/main/resource/database/hsqldb/data.sql

insert into t_sample (sample_no, title, description) values (1, '타이틀 1', '설명 1');
insert into t_sample (sample_no, title, description) values (2, '타이틀 2', '설명 2');
insert into t_sample (sample_no, title, description) values (3, '타이틀 3', '설명 3');
insert into t_sample (sample_no, title, description) values (4, '타이틀 4', '설명 4');
insert into t_sample (sample_no, title, description) values (5, '타이틀 5', '설명 5');
insert into t_sample (sample_no, title, description) values (6, '타이틀 6', '설명 6');
insert into t_sample (sample_no, title, description) values (7, '타이틀 7', '설명 7');
commit;

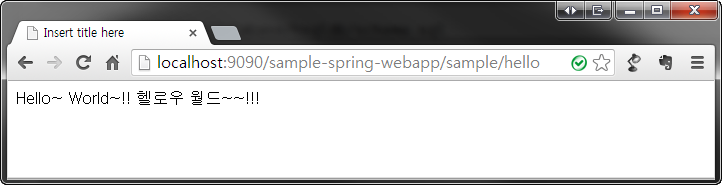

http://localhost:9090/sample-spring-webapp/sample/hello

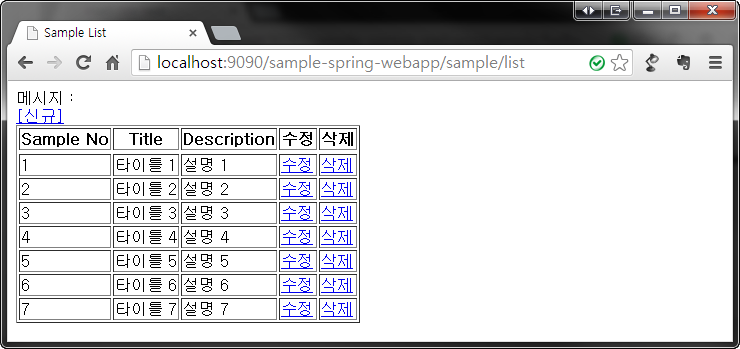

http://localhost:9090/sample-spring-webapp/sample/list

참조

---

개발환경 전체

1. eclipse.ini

-startup plugins/org.eclipse.equinox.launcher_1.3.201.v20161025-1711.jar --launcher.library plugins/org.eclipse.equinox.launcher.win32.win32.x86_64_1.1.401.v20161122-1740 -product org.eclipse.epp.package.jee.product --launcher.defaultAction openFile -showsplash org.eclipse.platform --launcher.defaultAction openFile --launcher.appendVmargs -vm C:/SpringMvnWeb/jdk1.8.0_202/bin/javaw.exe -vmargs -Dosgi.requiredJavaVersion=1.8 -Xverify:none -XX:+UseParallelGC -XX:-UseConcMarkSweepGC -XX:PermSize=32M -XX:MaxPermSize=128M -XX:MaxNewSize=32M -XX:NewSize=32M -Xms512m -Xmx1024m

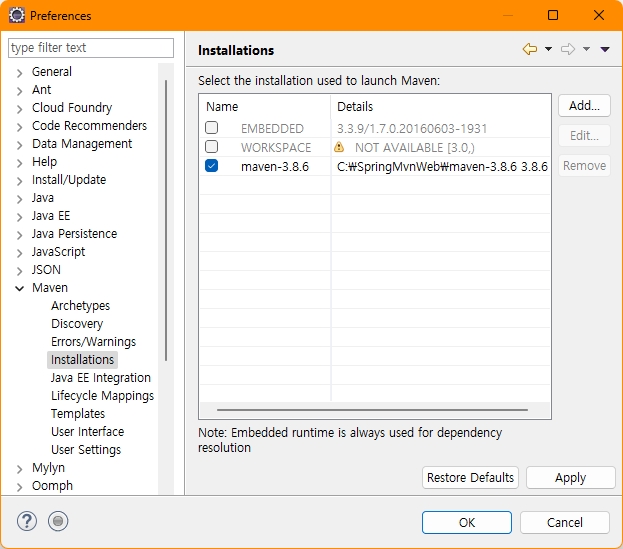

2. Maven 3.8.6

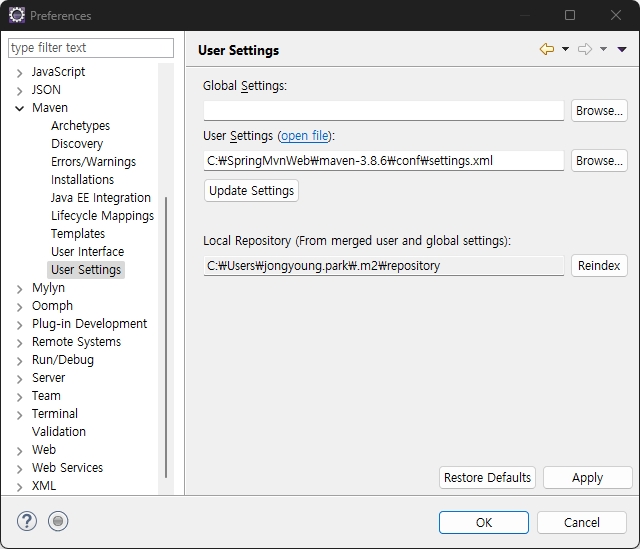

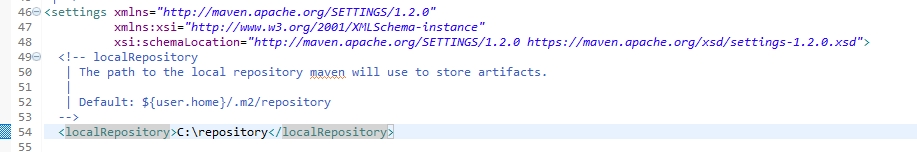

setting.xml

STS 플러그인 설치

Spring Tools 4는 Eclipse Neon(4.6.3)에서 사용할 수 없으며, 최신 Eclipse 버전만 지원한다고 합니다. Neon에서 사용할 수 있는 버전은 Spring Tool Suite 3(3.9.8)은 Eclipse 2018-09, 2018-12 및 2019-03 정도. Eclipse 4.6과의 호환성을 위해 빌드된 Spring Tool Suite 3의 최신 버전은 3.9.4 하지만 이 버전은 더 이상 지원되지 않으므로, 최신 Eclipse 버전으로 업데이트 해야 한다고 합니다.

https://github.com/spring-projects/sts4/issues/274

install Spring Tools Suite (STS) for eclipse neon(version 4.6.3) online · Issue #274 · spring-projects/sts4



개발환경 다운로드

https://mega.nz/file/MakC0CDK#tCCYVOg13Cq4xccC2SlNviCuAcxJVF--oQGFaS0Q3RA

704.91 MB file on MEGA

개발환경 셋팅

c:\SpringMvnWeb 폴더에 압축파일을 풀면 됩니다.

실행 - eclipse.exe 파일을 실행합니다.

---

참고

context-datasource.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:util="http://www.springframework.org/schema/util"
    xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p" xmlns:jdbc="http://www.springframework.org/schema/jdbc"
    xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
        http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-3.1.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.1.xsd
        http://www.springframework.org/schema/jdbc http://www.springframework.org/schema/jdbc/spring-jdbc-3.1.xsd">

    <!-- 아래와 같이 바꿈.
    <jdbc:embedded-database id="dataSource" type="HSQL" />

    <jdbc:initialize-database data-source="dataSource" ignore-failures="DROPS">
        <jdbc:script location="classpath:database/hsqldb/schema.sql" />
        <jdbc:script location="classpath:database/hsqldb/data.sql" />
    </jdbc:initialize-database>
     -->
    <beans profile="dev">
	    <jdbc:embedded-database id="embdDataSource" type="HSQL">
	        <jdbc:script location="classpath:database/hsqldb/schema.sql" />
	        <jdbc:script location="classpath:database/hsqldb/data.sql" />
	    </jdbc:embedded-database>

	    <!-- Custom sql formatter  -->
	    <bean id="dataSource" class="net.sf.log4jdbc.Log4jdbcProxyDataSource">
	        <constructor-arg ref="embdDataSource" />
	        <property name="logFormatter">
	            <bean class="net.sf.log4jdbc.tools.Log4JdbcCustomFormatter">
	                <property name="loggingType" value="MULTI_LINE" />
	                <property name="sqlPrefix" value="[SQL] " />
	            </bean>
	        </property>
	    </bean>
    </beans>

</beans>
